KOHLER 20EFOZD

KOHLER Marine Diesel Generators / 20EFOZD, 1-Phase

Type : 20EFOZD
Output : 20 kW
Voltage : 230 V
Hertz : 50 Hz

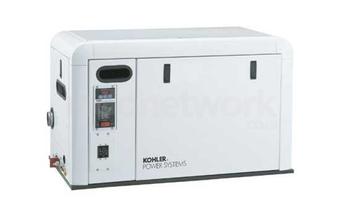

Generator with sound shield
Width : 635 mm ( 25 in.)
Height : 690 mm ( 27.18 in.)
Length, 12-volt : 1049.3 mm ( 41.31 in.)
Length, 24-volt : 1137 mm ( 44.75 in.)
Weight, wet : 398 kg ( 880 lbs)

Engine features:
- Certified by the Environmental Protection Agency ( EPA) to conform to Tier 4 emissions regulations
- Closed cooling sytem
- Heat exchanger
- One-side serviceability of fuel system, lubrication system, seawater pump, and air cleaner
- Oil drain valve and hose

Generator features:
- Remote start 12-pin connector
- Voltage regulation of ± 1.5%
- Rotor and stator are coated with a high-bond epoxy varnish. Varnish helps prevent corrosion in high-humidity areas.
- Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for class H insulation.
- Direct connected to the engine, the generator has sealed precision ball bearings with a precision-machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.
